Mining Electric Winch: Applications and Benefits

Mining operations require reliable equipment for lifting, pulling, positioning, and transporting heavy materials. An electric winch is a practical solution for many of these tasks, especially when consistent pulling force and controlled operation are required.

A mining electric winch can be used in underground mines, open-pit mining sites, workshops, processing plants, and equipment maintenance areas. Depending on the application, the winch can be configured with different lifting capacities, wire rope lengths, motor powers, speeds, and control systems.

What Is a Mining Electric Winch?

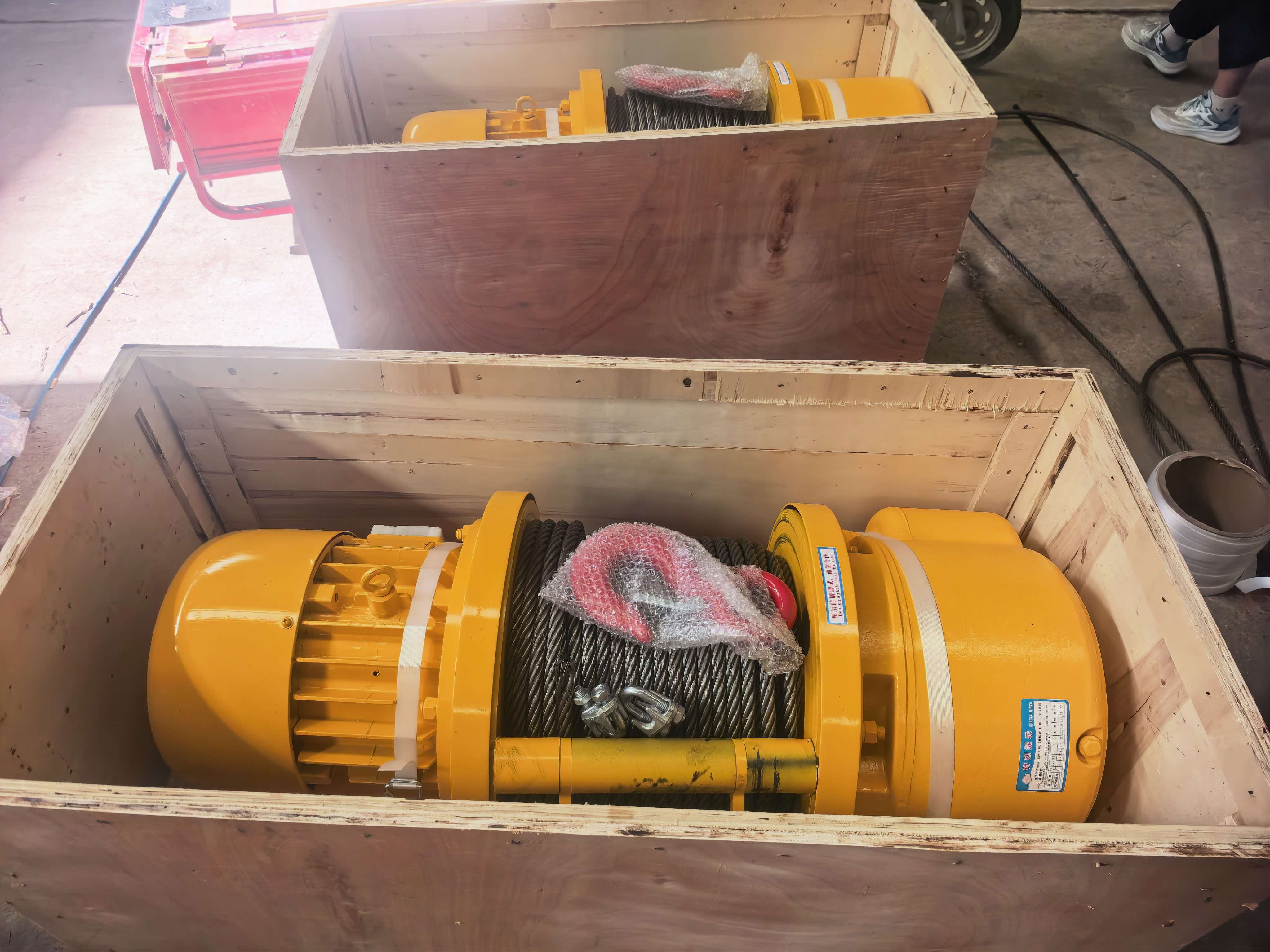

An electric winch uses an electric motor to drive a drum and wind or unwind wire rope. Compared with manually operated equipment, an electric winch provides more consistent power and easier control when handling heavy loads.

For mining applications, the winch configuration should be selected according to the actual working conditions, including load capacity, rope travel, operating frequency, installation space, and power supply.

Some products can be designed with reference to internationally recognized standards, including the ASME B30 series, FEM 9.511 / 9.755, EN 14492, and ISO 4301. The applicable standard depends on the specific product design and application.

Applications in the Mining Industry

Underground Mining

Underground mines often have limited working space and complicated transportation routes. Electric winches can be used for material pulling, equipment positioning, maintenance work, and other lifting or hauling operations.

The rope length and motor power can be customized according to the distance and load requirements of the project.

Open-Pit Mining

Open-pit mining operations may require winches for equipment maintenance, component handling, pulling operations, and material positioning.

A properly configured electric winch can provide controlled movement for heavy equipment and components.

Mining Equipment Maintenance

Large mining machines require regular inspection and maintenance. During maintenance work, electric winches can assist in moving motors, pumps, gearboxes, conveyor components, and other heavy parts.

This can reduce manual handling and improve maintenance efficiency.

Mining Workshops and Processing Plants

Electric winches can also be installed in workshops and mineral processing facilities where heavy components need to be moved regularly.

Depending on the installation requirements, customers can choose different mounting arrangements, rope lengths, operating speeds, and control configurations.

Customized Winch Solutions

Mining projects are rarely identical. For this reason, a standard winch configuration may not always be the most suitable choice.

VERTEX supports customized electric winch solutions according to project requirements. Options may include:

• Wire rope length

• Motor power

• Voltage and frequency

• Control system

• Brake configuration

• Equipment color

The working environment should also be considered when selecting the appropriate protection level and electrical configuration.

Standards and Wire Rope Requirements

Wire rope is an important component of a mining electric winch. Proper rope diameter, length, construction, and winding arrangement should be selected according to the rated load and operating conditions.

For applicable lifting equipment, ISO 4309 provides guidance related to the care, maintenance, examination, and discard of wire ropes.

Part of our products reference relevant international standards, while the final technical requirements depend on the specific product and project.

Choose the Right Winch for Your Project

Before selecting a mining electric winch, customers should confirm the required capacity, rope length, speed, working duty, power supply, installation method, and working environment.

With the right configuration, an electric winch can provide reliable and controlled lifting and hauling performance for demanding mining applications.

VERTEX provides customized electric winch solutions for mining, industrial maintenance, material handling, and other heavy-duty applications. VERTEX have nearly 20 years of experience in the production of winches.

Contact us with your project requirements, and our team can recommend a suitable winch configuration for your application.
