A gantry crane is a versatile lifting solution widely used in workshops, warehouses, construction sites, and outdoor yards. Understanding its main components helps users select the right configuration and ensure safe, efficient operation.

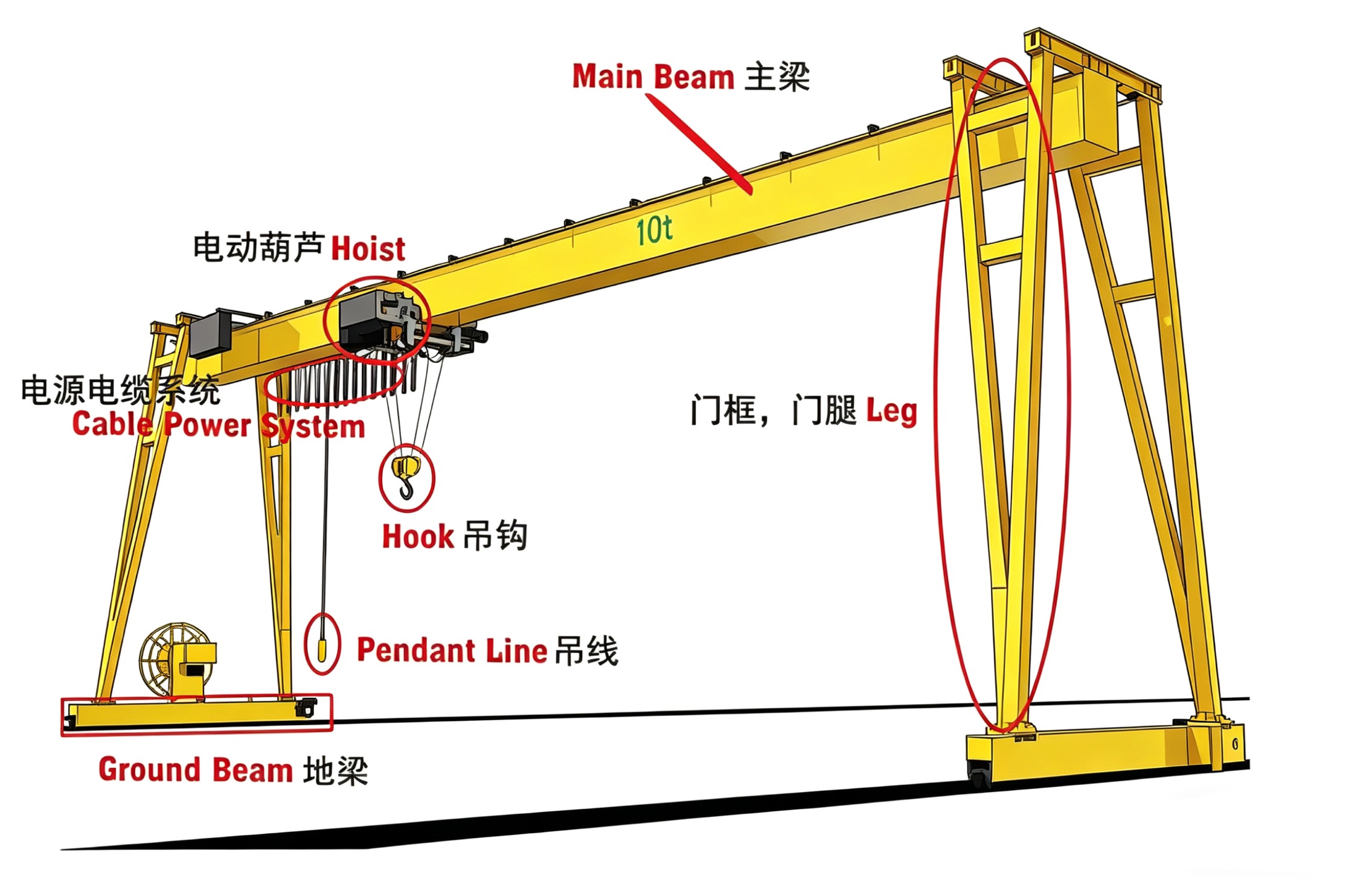

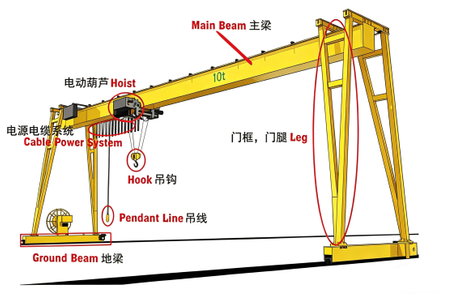

The main beam is the core load-bearing structure of the gantry crane. It supports the hoist and carries the full lifting load across the span. A well-designed main beam ensures strength, stability, and minimal deflection during operation. In this example, the crane is designed with a 10-ton capacity, making it suitable for medium to heavy-duty applications.

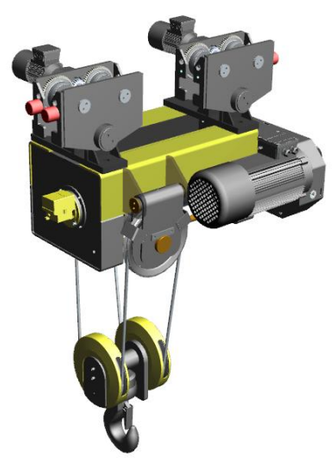

Mounted on the main beam, the electric hoist is responsible for lifting and lowering materials. It travels horizontally along the beam, allowing precise positioning of loads. Wire rope hoists are commonly used for higher lifting capacities and smoother operation.
Manufacturers such as Zhejiang Vertex Machinery Co., Ltd. provide a range of electric hoists designed for stable performance and long service life, suitable for integration into various gantry crane systems.
The hook is attached to the hoist and directly holds the load. It is typically made from high-strength forged steel to ensure durability and safety during lifting tasks.
The cable power system supplies electricity to the hoist and traveling mechanism. A reliable system ensures continuous operation and reduces maintenance requirements.
The pendant line allows operators to control the crane’s movements, including lifting, lowering, and traveling. It provides flexibility and ease of operation in different working environments.
The legs (or frames) connect the main beam to the ground beam, providing structural support and stability. Their design plays a key role in maintaining balance during lifting operations.
The ground beam supports the entire crane and is typically equipped with wheels or rails, allowing the gantry crane to move along the ground. This mobility makes it suitable for both indoor and outdoor applications.
Each component of a gantry crane plays an important role in overall performance and safety. From the main beam to the hoist and supporting structure, a properly designed system ensures efficient material handling. Working with experienced manufacturers like Zhejiang Vertex Machinery Co., Ltd. can help ensure reliable equipment and consistent performance across different industrial applications.
