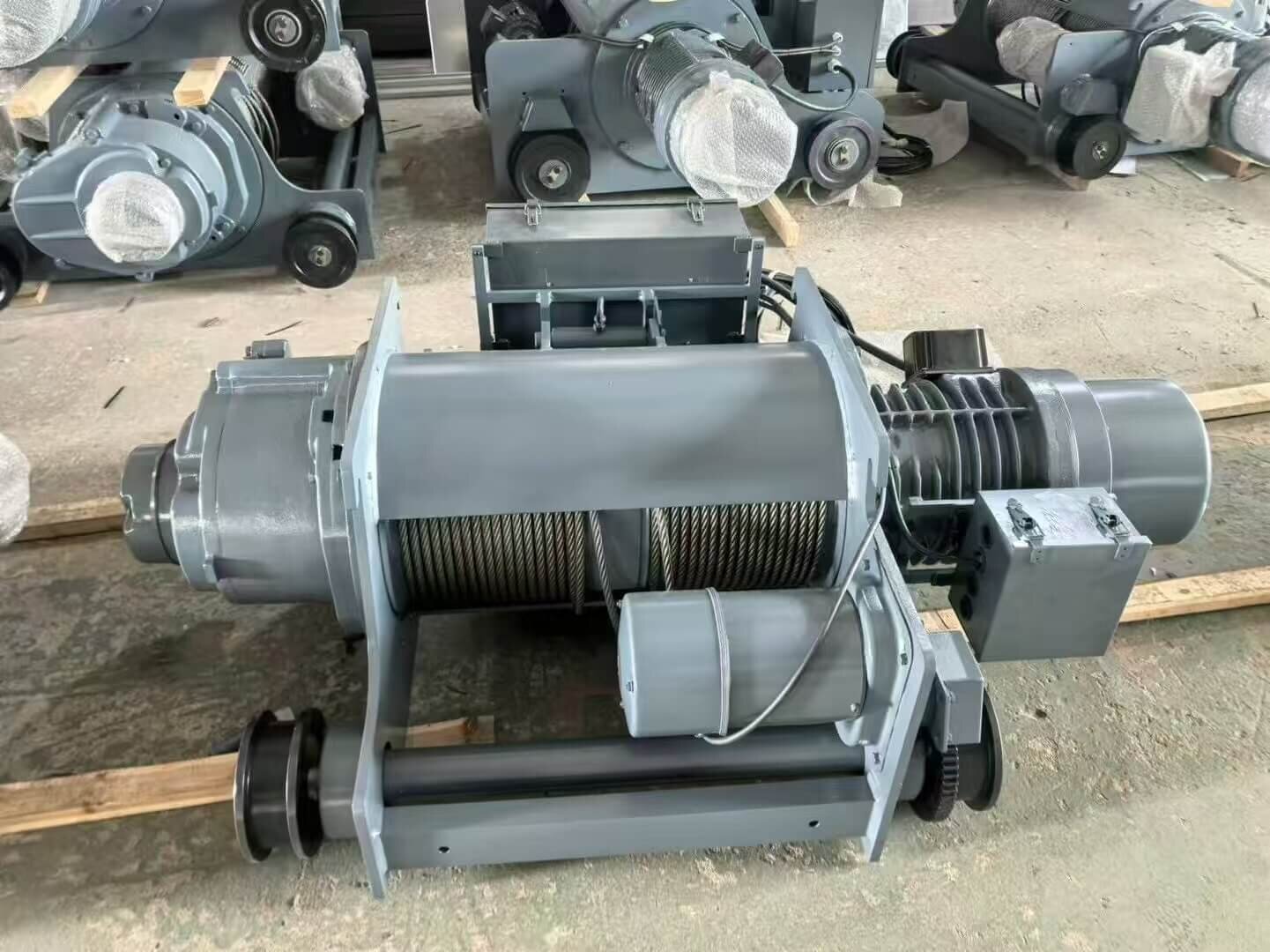

10T Double Gider Crane Japanese Wire Rope Hoist

Our 10-ton double-girder Japanese-style wire rope hoist is an industrial lifting device designed for medium-to-heavy material handling. Leveraging a double-girder frame and high-strength steel wire rope drive system, it can reliably lift and lower a 10-ton rated load, combining high load-bearing capacity with operational flexibility.

• Rated lifting capacity: 10 tons, meeting the needs of medium and heavy load lifting, short-term overload capacity reaches 110% (subject to compliance with safety operating regulations).

• Lifting height: The standard configuration is 9-12 meters, and the extended version can be customized according to the user's working space to adapt to different factory heights.

• Lifting speed: Conventional speed 8-10m/min (heavy load), 16-20m/min (light load), dual-speed design takes into account both efficiency and precise positioning.

• Running speed: The trolley running speed is 20-30m/min, and the trolley running speed is 10-15m/min. The speed can be adjusted steplessly through the frequency conversion system.

• Working level: A5-A6, suitable for medium-high frequency continuous operation, meeting the high-intensity lifting needs of 8-12 hours a day.

• Wire rope: 6*37WS structure galvanized steel wire rope is used, which has wear resistance and corrosion resistance. Its service life is 30% longer than that of ordinary steel wire rope.

• Reel and rope guide: The reel is welded with 45# seamless steel pipe, and the surface is quenched (hardness HRC45-50). It is equipped with a spiral rope guide to ensure that the wire rope is arranged neatly and avoid rope jamming.

• Reducer: Hardened cylindrical gear reducer, gear material is 20CrMnTi, carburized and quenched, transmission efficiency is not less than 94%, operating noise is not higher than 75dB, load-bearing stability, low consumption and quietness.
